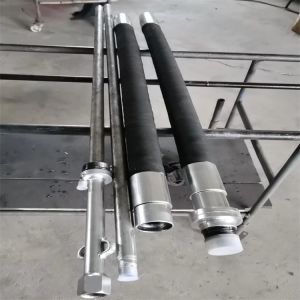

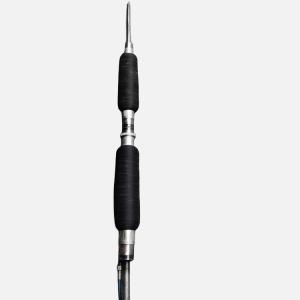

Inflated Packers For Wire-Line Core Barrels Permeability Testing (NQ HQ PQ SQ)

The Lugeon test, sometimes call also Packer test, is an in-situ testing method widely used to estimate the avarage hydraulic conductivity of rock mass. It is indeed In situ test of formation permeability performed by measuring the volume of water taken in a section of test hole when the interval is pressurized at given pressure (10 bars -150 psi). It is used primarily in variably permeable formations under evaluation of fracturating .

Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.

Main technical parameters:
Sealing hole diameter: 30-200mm (can be processed according to user requirements)
Working pressure :1-8MPa (can be processed according to user needs)
Work flow rate: 3-4.5 tons of grouting per hour
Sealing depth: 1-8000m

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting and drilling materials in the fields of water conservancy, geology, mining, tunnel, subway, construction, geological survey, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed slurry making machines, mud stations, grouting machines, Lurong test packers and Lurong test equipment, diamond drill bits, reamers, geological drill rods and casings, survey drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, rock core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and drilling accessories, grouting pump accessories and drilling rig accessories.

Our team is committed to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Waiting for engineering drilling to provide solutions.

We can provide customers with accurate, valuable, and targeted solutions and services based on their specific requirements and needs.
